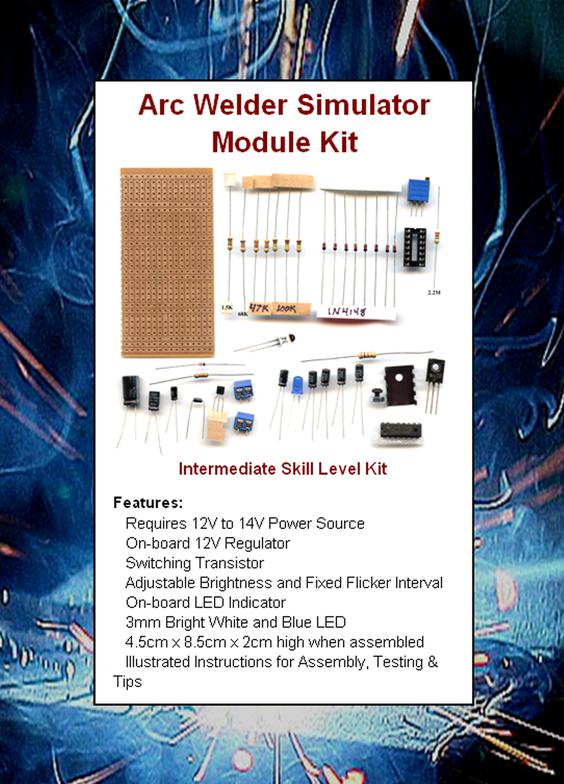

Arc Welder Simulator Kit  #22
A Satisfying Building Experience That Will Add Animation to Your Scene
Kit Includes:
8pcs 1N4148 Fast Switching Diodes
1pc 14-pin IC Socket
1pc 20K Trim Pot
1pc 2.2Meg 1/4W Resistor
3pcs 100K 1/4W Resistors
1pc 68K 1/4W Resistor
2pcs 47K 1/4W Resistors
1pc 1.5K 1/4W Resistor
1pc 8.5x4.5cm Printed Circuit Board
1pc CD40106 Hex Schmitt Trigger IC
1pc BD679 NPN Darlington Transistor
1pc 1K 1/2W Resistor
4pcs 2.2uF 25-50V Electrolytic Capacitors
1pc 4.7uF 25-50V Electrolytic Capacitor
1pc 5mm Blue LED
1pc 1N4007 Silicon Diode
1pc 12V 1W Zener Diode
1pc BC547 NPN Transistor
2pcs 470 ohm 1/2W Resistor
1pc 22uF 16-25V Electrolytic Capacitor
1pc 100uF 25-50V Electrolytic Capacitor
1pc 470uF 25V Electrolytic Capacitor
2pcs 2-Screw Terminals
2pcs 3mm Bright White & Blue LED's
Illustrated Assembly Instructions
Kit #22     $16.45
This module ​can be controlled by a sequencing / timer circuit or a simple ON-OFF switch.
