Dual Smoke Generator Kit #21
Great of Model Railroads or Dioramas to Add Smoke for Special Effects

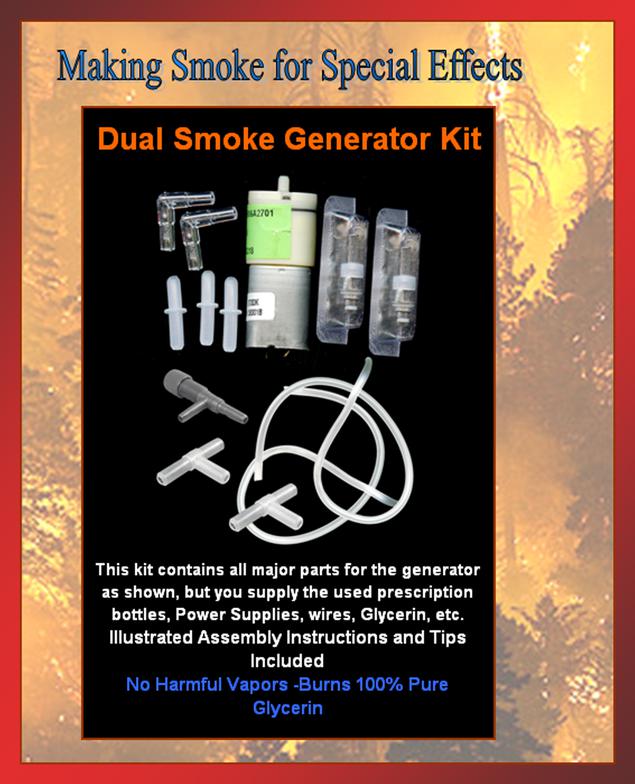

Dual Smoke Generator Kit #21

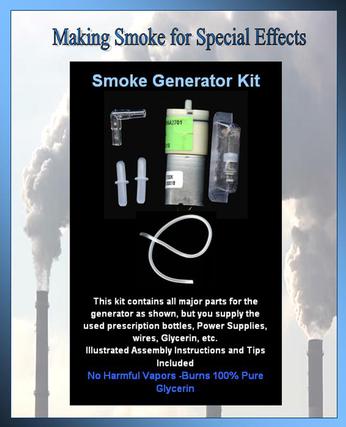

Single Smoke Generator Kit #20
Kit Includes:
Kit Includes:
1 pc 3-6Vdc Motor and Air Pump (2 L/min air-flow at 6Vdc) -New and Less Noise
2pcs Replacement E-cig Heater Coil 3.7Vdc max (I recommend use at 3.2 to 3.5Vdc)
32" of 4mm flexible Flexible Air Tubing
3pcs 4mm Straight Plastic Connectors
2pcs Right-angle Plastic Elbow Connector
2pcs 4mm Plastic "Tee" Connectors
1pc Adjustable Plastic Air Flow Valves
Illustrated Assembly instructions and Tips
No Harmful Vapors -Burns 100% Pure Glycerin
The heater coils must have a power supply that can be controlled between 3.2 and 3.7Vdc (max). The motor for the air pump must have a supply voltage of 3V to 6VDC. Both the motor and the heater require a higher amperage rating of 3 to 5 Amps. I recommend an old DC train transformer with higher amperage and adjustable voltage output for the power supply. Soldering the small wires to the heater coil requires good soldering skills. The surfaces must be cleaned with alcohol and both the wire and the surface must be pretinned. If the coil overheats in use, the wires can desolder. I recommend not exceeding 3.2Vdc and intermittent operation. I only operate my units for 10 sec out of 40 sec for smoke stacks, which produce plenty of effect. Unit could be wired with a push-button switch for simple momentary operation or controlled by a recycling timer (timer sold separately).
1 pc 3-6Vdc Motor and Air Pump (2 L/min air-flow at 6Vdc) -New and Less Noise
1pc Replacement E-cig Heater Coil 3.7Vdc max (I recommend use at 3.2 to 3.5Vdc)
16" of 4mm flexible Flexible Air Tubing
2pcs 4mm Straight Plastic Connectors
1pc Right-angle Plastic Elbow Connector
Illustrated Assembly instructions and Tips
Kit #21 $31.95
Kit #20 $26.95
