Rails and Trails Imaging
Printed Circuit Boards for Your DIY Projects
Hard to Find, Versitle PCB'c for Easy in Mounting Most Components Including IC's

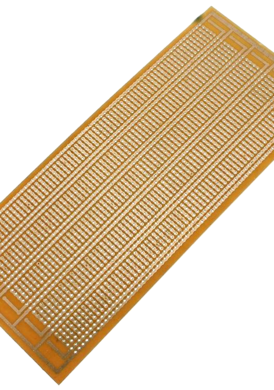

Prototype Universal Matrix Board #3a
8.5 x 20 cm w/Multiple Bus Strips

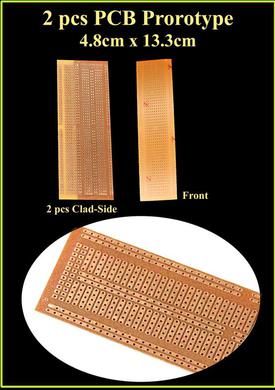

Universal Matrix Board w/Bus #3b
4.8 x 13.3 cm w/Bus Strips

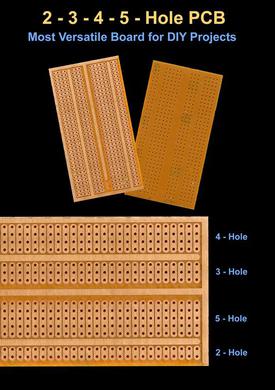

2-3-4-5- Hole Pattern PCB #3c
5 x 9.5 cm
1 pc PCB #3a $4.89
1 pc PCB #3b $4.79
2 pcs PCB #3c $4.99
Specifications:
For point to point DIY soldering
4-hole segments instead of the typical 3-hole
5 Pairs of Bus strips for improving
distribution of power access
Pre-drilled and cleaned
Easy to cut and drill
Smooth solder flow
Single side Copper PCB
Hole diameter approx 1mm
Hole pitch standard 2.54mm
8.5cm x 20cm overall size
Thichness approx. 1.2mm
Specifications:
Specifications:
Pre-drilled and cleaned
Easy to cut and drill
Smooth solder flow
Material is Bakelite
Single side Copper PCB
Unique 2-3-4-5 hole pattern
Hole diameter approx. 1mm
9.5cm x 5cm overall size
Thichness approx. 1.2mm
For point to point DIY soldering
4-hole segments instead of the typical 3-hole
3 Pairs of Bus strips
Pre-drilled and cleaned
Easy to cut and drill
Smooth solder flow
Single side Copper PCB
Hole diameter approx 1mm
Hole pitch standard 2.54mm
4.8cm x 13.3cm overall size
Thichness approx. 1.2mm
Low Inventory
